Memory is foundational for building truly context-aware and personalized AI applications. We explore how to construct a robust Memory Agent from langgraph, that utilizes langgraph for orchestration. This agent not only remembers facts but also decides when to save new information and how to use it.

This agent performs various memory related functionality. It can be evaluated in the following criteria

• Routing correctness: how accurate it calls the memory methods such as update memory.
• Writing correctness: whether the memory after an update matches what user meant
• Retrieval correctness: whether the agent retrieves the right memories for the given query
• Temporal correctness: whether time related fields and status transitions are correct

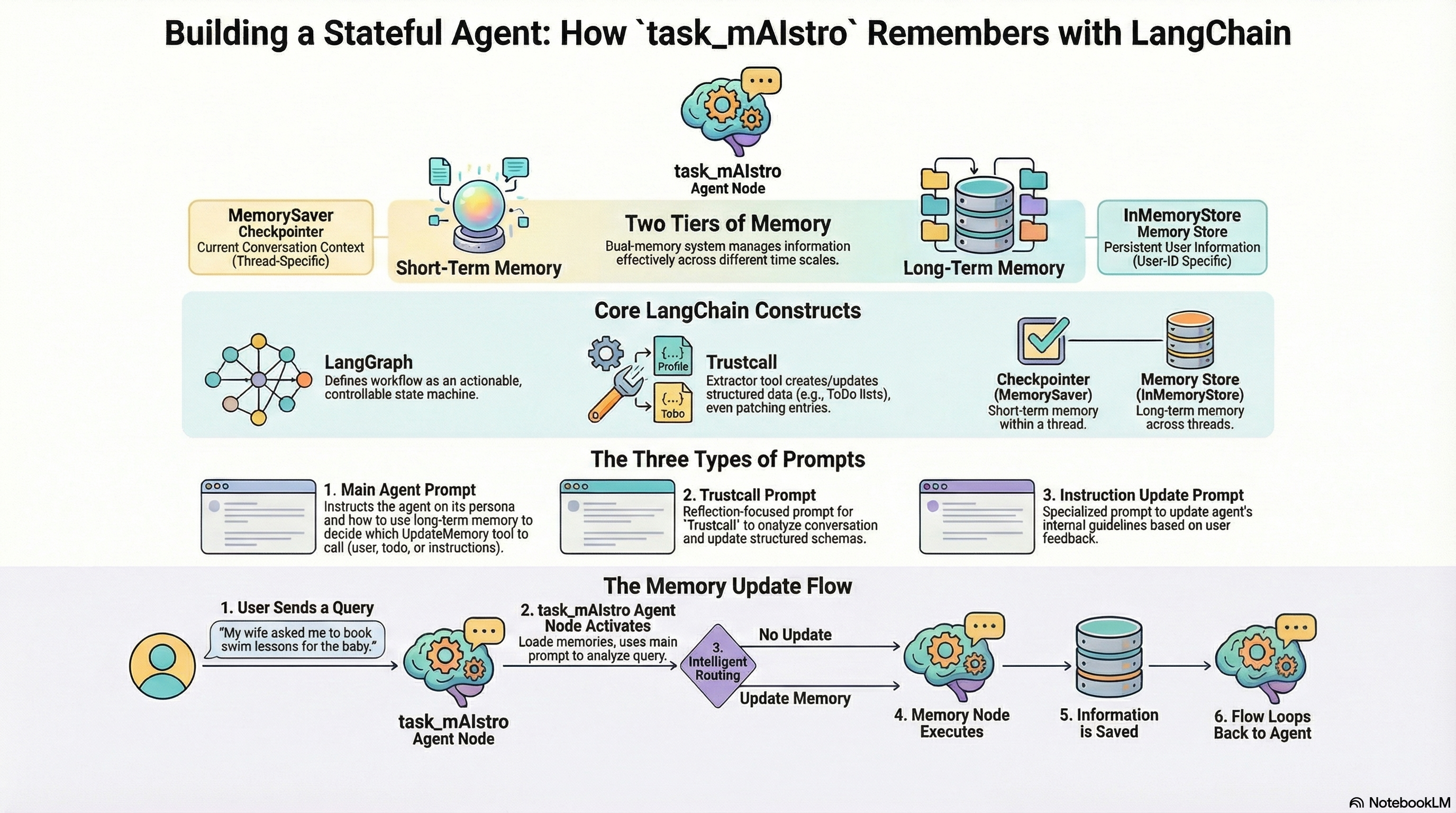

🌐 High-Level Architecture: From Stateless to Stateful

Memory agent called task_mAIstro acts as a central orchestrator that transforms an LLM into a context-aware system. It differentiates itself through four architectural pillars:

• Contextual Persistence: It implements a tiered memory system (Semantic, Episodic, Procedural).
• Dynamic Routing: It utilizes a graph-based state machine to determine when to write to memory versus when to simply respond.
• Verifiability: It rejects “black box” memory in favor of inspectable, structured storage.
• Composability: built on the langgraph framework, allowing for modular extension.

The Execution Flow

1. Ingestion: User input enters the system.
2. Cognitive Routing: A decision tool (UpdateMemory) analyzes the intent. Does this input require a change to the user’s profile, the task list, or the rules of engagement?
3. State Transition: The graph routes the state to a specific update node (update_profile, update_todos, etc.).
4. Consolidation: Data is committed to the InMemoryStore (Long-term) or MemorySaver (Short-term/Thread-level).
5. Feedback Loop: The system verifies the write operation via internal “Spy” listeners or external user confirmation.

🧠 The Taxonomy of AI Memory

To build a truly intelligent agent, we must move beyond a generic “context window.” task_mAIstro segments data into three distinct cognitive categories, mimicking human memory systems:

Structured Schema Definitions

By using Pydantic, we enforce strict typing on our memory, preventing hallucinations from corrupting the agent’s long-term state.

from pydantic import BaseModel, Field
from typing import Optional, Literal, List
from datetime import datetime

# Semantic Memory (The "Who")
class Profile(BaseModel):
    name: Optional[str] = Field(description="User's preferred name")
    location: Optional[str] = Field(description="Current geographical context")
    job: Optional[str] = Field(description="Professional role")
    interests: List[str] = Field(description="Topics of engagement")

# Episodic Memory (The "What")
class ToDo(BaseModel):
    task: str = Field(description="Actionable item")
    deadline: Optional[datetime] = Field(description="Hard constraint for completion")
    solutions: List[str] = Field(description="Proposed pathways to completion")
    status: Literal["not started", "in progress", "done", "archived"]

# Procedural Memory is handled via raw instruction strings injection.

🔗 The StateGraph: Orchestrating Cognition

The nervous system of task_mAIstro is the StateGraph. This defines the deterministic flows between reasoning and memory updates.

Unlike a linear chain, this graph allows for conditional branching:

from langgraph.graph import StateGraph, END
from typing import TypedDict, Literal

# Define the State schema to track routing intent
class AgentState(TypedDict):
    update_type: Literal["user", "todo", "instructions", "none"]
    messages: list

# Initialize the Graph
builder = StateGraph(AgentState)

# 1. Define Nodes (The Functional Units)
builder.add_node("task_mAIstro", task_mAIstro_agent)
builder.add_node("update_profile", update_profile_tool)
builder.add_node("update_todos", update_todos_tool)
builder.add_node("update_instructions", update_instructions_tool)

# 2. Define Conditional Routing (The Logic)
def route_memory(state: AgentState):
    """Determines which memory subsystem requires an update."""
    return state.get("update_type", "none")

builder.add_conditional_edges(
    "task_mAIstro",
    route_memory,
    {
        "user": "update_profile",
        "todo": "update_todos",
        "instructions": "update_instructions",
        "none": END
    }
)

# 3. Define Re-entry (The Feedback Loop)
# After memory is updated, loop back to the agent to confirm or continue
builder.add_edge("update_profile", "task_mAIstro")
builder.add_edge("update_todos", "task_mAIstro")
builder.add_edge("update_instructions", "task_mAIstro")

# 4. Compile
builder.set_entry_point("task_mAIstro")
graph = builder.compile()

📊 Visualizing the Logic Flow

The following Mermaid diagram illustrates the cyclical nature of the agent’s memory update process. Note the closed feedback loops that ensure the agent remains aware of its own memory modifications.

graph TD
    %% Nodes
    Start((Start)) --> A[task_mAIstro Agent]

    %% Logic Decision
    A -->|Decision: Update Profile| B[Node: update_profile]
    A -->|Decision: Update ToDo| C[Node: update_todos]
    A -->|Decision: Update Rules| D[Node: update_instructions]
    A -->|No Update Needed| E((END))

    %% Feedback Loops
    B --> A
    C --> A
    D --> A

    %% Styling
    style A fill:#f9f,stroke:#333,stroke-width:2px
    style E fill:#ccf,stroke:#333,stroke-width:2px

✅ Trust and Verification

A memory system is only as good as its accuracy. task_mAIstro implements a “Trust but Verify” protocol:

1. Observability (The “Spy”): We attach a listener to the tool execution stream. This allows developers to inspect the raw PatchDoc calls—seeing exactly how the JSON patch was applied to the memory store.

   Log Output: Document 0 updated: Plan: Replace 'location' value. Result: 'Sammamish, WA'

2. Explicit User Confirmation: For high-stakes episodic memory (like modifying a deadline), the agent is instructed to request verbal confirmation before committing the state change.

3. Direct Store Inspection: Developers can bypass the agent simulation and query the KV (Key-Value) store directly to debug state issues.

   # Direct access to the instruction namespace for user 'Lance'
   current_rules = across_thread_memory.get(("instructions", "Lance"))


🚀 Conclusion

task_mAIstro represents a shift from reactive AI to accumulative AI. By unifying semantic, episodic, and procedural memory into a single graph-based architecture, we create agents that do not just process tokens—they build relationships and maintain continuity.

This architecture balances the flexibility of LLMs with the rigidity required for reliable software, ensuring your agent becomes a long-term partner rather than a fleeting conversationalist.
